dodonew登录算法逆向

Android
Created At :
Views 👀 :

打开dodonew，输入账号密码点击登录抓包，看到一串加密的数据

1
2
3
4
5
6
7
8
9
10
POST /api/user/login HTTP/1.1
If-Modified-Since: Mon, 11 Mar 2024 12:09:07 GMT
Content-Type: application/json; charset=utf-8
User-Agent: Dalvik/2.1.0 (Linux; U; Android 13; Pixel 4a Build/TP1A.221105.002)
Host: api.dodovip.com
Connection: Keep-Alive
Accept-Encoding: gzip
Content-Length: 250

{"Encrypt":"NIszaqFPos1vd0pFqKlB42Np5itPxaNH\/\/FDsRnlBfgL4lcVxjXii\/UNcdXYMk0E528uVVD\/0ojS\n\/CfQpVGA88EtRCaHnc+pKNmbScm9kxa6O3hJ4KxkBB+1vCpWa4jfbRYHYbLzPYXmyUksg4bXHumw\nVdH\/JVoS3kS2D6BzukuijAEj3WBYez3FKIDycA0W4550eyiUIxOCifvYHDDdBcXjeasSKzkJ\n"}

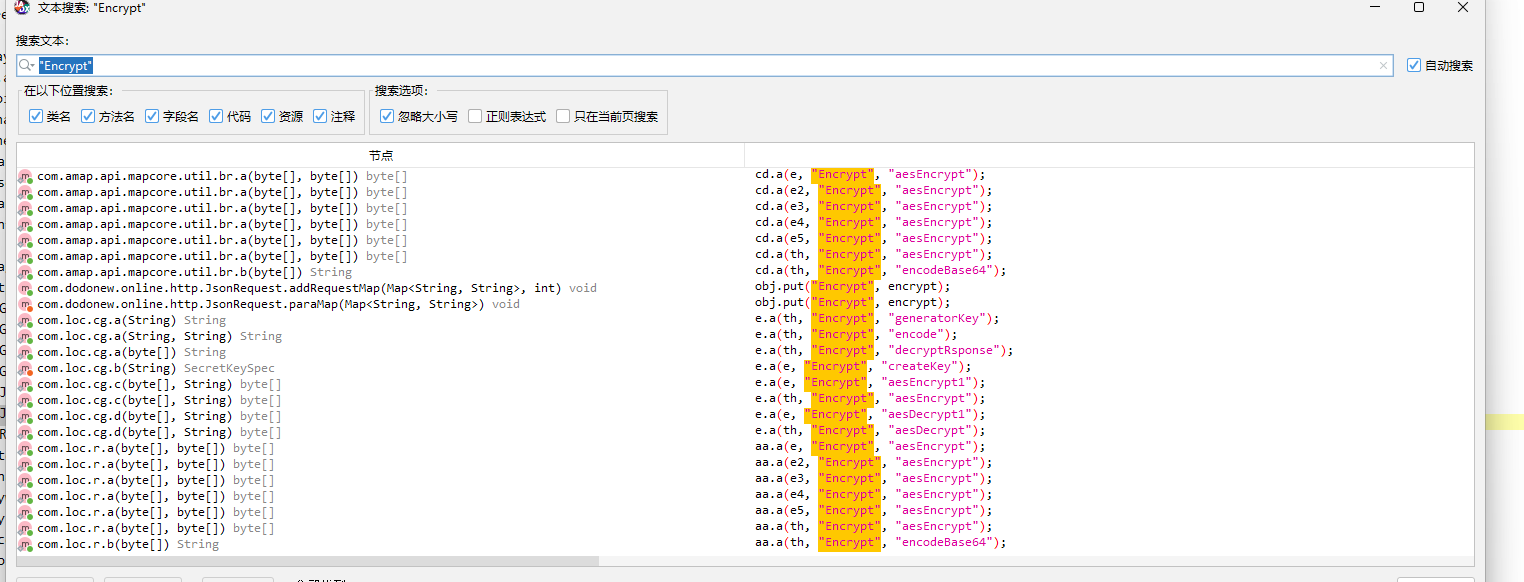

把apk拖进jadx中反编译，搜索一下关键字 “Encrypt”,dodonew1

看到com.dodonew.online这个关键类，直接跟进

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
public void addRequestMap(Map<String, String> addMap, int a) {
    String time = System.currentTimeMillis() + "";
    if (addMap == null) {
        addMap = new HashMap<>();
    }
    addMap.put("timeStamp", time);
    String code = RequestUtil.paraMap(addMap, Config.BASE_APPEND, "sign");
    String encrypt = RequestUtil.encodeDesMap(code, this.desKey, this.desIV);
    JSONObject obj = new JSONObject();
    try {
        obj.put("Encrypt", encrypt);
        this.mRequestBody = obj + "";
    } catch (JSONException e) {
        e.printStackTrace();
    }
}

或者通过objection注入找到关键类DesSecurity，查找用例，同样能定位到Encrypt的关键加密代码

可以看到Encrypt是由RequestUtil.encodeDesMap这个方法生成的，所以选择去hook一下这个方法先

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
function hook_addRequest(){
    console.log("[*] script onloaded");
    Java.perform(function(){
        console.log("[*] function onloaded");
        var Util = Java.use("com.dodonew.online.http.RequestUtil");
        Util.encodeDesMap.overload('java.lang.String','java.lang.String','java.lang.String').implementation = function(code,desKey,desIV){
            console.log("[*] Method onloaded");
            console.log("code: ",code);
            console.log("Key: ",desKey);
            console.log("IV: ",desIV);
            var retval = this.encodeDesMap(code,desKey,desIV);
            console.log("retval: ",retval);
            return retval;
        }
    });
}

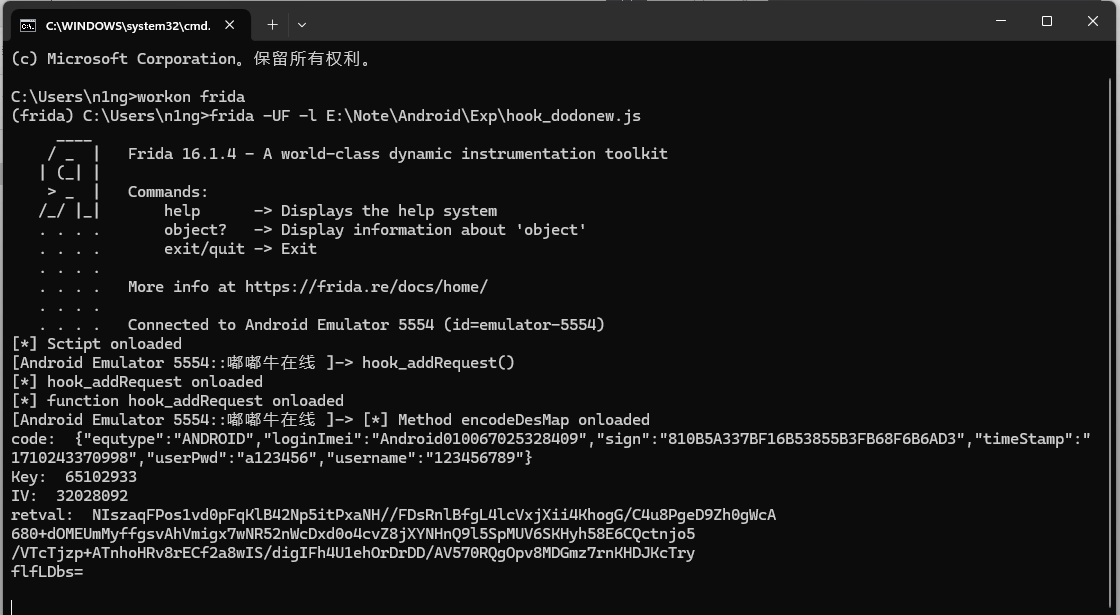

dodonew2

可以看到传入的code，为了方便，可以写一个主动调用函数，直接将这个code的信息传进去

1
2
3
4
5
6
7
8
9
10
11
function call_java(){
    console.log("[*] call_java onloaded");
    Java.perform(function(){
        console.log("[*]function call_java onloaded");
        var Util = Java.use("com.dodonew.online.http.RequestUtil");
        var retval = Util.encodeDesMap('{"equtype":"ANDROID","loginImei":"Android010067025328409","sign":"810B5A337BF16B53855B3FB68F6B6AD3","timeStamp":"1710243370998","userPwd":"a123456","username":"123456789"}','65102933','32028092');
        console.log("retval :",retval);

    });

}

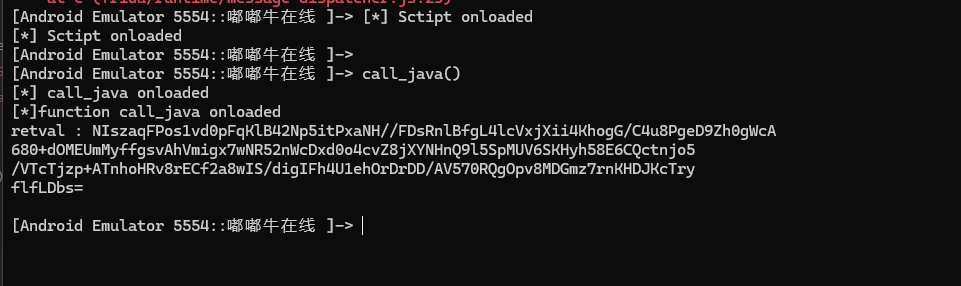

dodonew3

可以看到返回值和之前hook的结果一致

继续跟进encodeDesMap

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
public DesSecurity(String key, String iv) throws Exception {
        if (key == null) {
            throw new NullPointerException("Parameter is null!");
        }
        InitCipher(key.getBytes(), iv.getBytes());
    }

    private void InitCipher(byte[] secKey, byte[] secIv) throws Exception {
        MessageDigest md = MessageDigest.getInstance("MD5");
        md.update(secKey);
        DESKeySpec dsk = new DESKeySpec(md.digest());
        SecretKeyFactory keyFactory = SecretKeyFactory.getInstance("DES");
        SecretKey key = keyFactory.generateSecret(dsk);
        IvParameterSpec iv = new IvParameterSpec(secIv);
        this.enCipher = Cipher.getInstance("DES/CBC/PKCS5Padding");
        this.deCipher = Cipher.getInstance("DES/CBC/PKCS5Padding");
        this.enCipher.init(1, key, iv);
        this.deCipher.init(2, key, iv);
    }

    public String encrypt64(byte[] data) throws Exception {
        return Base64.encodeToString(this.enCipher.doFinal(data), 0);
    }

    public byte[] decrypt64(String data) throws Exception {
        return this.deCipher.doFinal(Base64.decode(data, 0));
    }

可以看出来就是Des的加密，但是先对key做了一个md5的加密，需要注意的是md5加密的结果有16个字节，但是des的密钥只需要8个字节所以只需要取前八个字节即可

分析code的组成，发现它是由账号，密码，时间戳等信息连接而成的，唯一不是明文的就是sign，因此继续分析

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
public static String paraMap(Map<String, String> addMap, String append, String sign) {
    try {
        Set<String> keyset = addMap.keySet();
        StringBuilder builder = new StringBuilder();
        List<String> list = new ArrayList<>();
        for (String keyName : keyset) {
            list.add(keyName + "=" + addMap.get(keyName));
        }
        Collections.sort(list);
        for (int i = 0; i < list.size(); i++) {
            builder.append(list.get(i));
            builder.append("&");
        }
        builder.append("key=" + append);
        String checkCode = Utils.md5(builder.toString()).toUpperCase();
        addMap.put("sign", checkCode);
        String result = new Gson().toJson(sortMapByKey(addMap));
        Log.w(AppConfig.DEBUG_TAG, result + "   result");
        return result;
    } catch (Exception e) {
        e.printStackTrace();
        return "";
    }
}

定位到这个关键类中发现sign是经过md5加密后的结果，先对md5这个函数进行hook

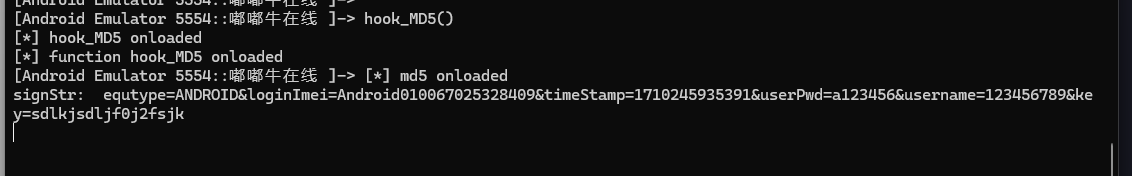

dodonew4

得到了sign加密前的值

1
'equtype=ANDROID&loginImei=Android010067025328409&timeStamp=1710245935391&userPwd=a123456&username=123456789&key=sdlkjsdljf0j2fsjk'

就是由账号密码等信息拼接而成的字符串，然后在结尾加了一个固定的字符串

所以总的来说登录的算法就是先将账号密码等信息进行拼接得到signStr，将signStr进行md5加密得到sign，然后将sign和账号密码等信息以及一个固定的字符串进行拼接，然后进行Des加密

现在进行算法还原，因为这里的算法比较简单，所以直接用js写个加密脚本或者在线工具就能还原出来

整理一下之前hook得到的信息

1
2
3
4
5
6
7
8
9
MD5 string:  equtype=ANDROID&loginImei=Android010067025328409&timeStamp=1710319473611&userPwd=a123456&username=123456789&key=sdlkjsdljf0j2fsjk
retval:  a488c4fc490922773b01b4ab80c00891
data:  {"equtype":"ANDROID","loginImei":"Android010067025328409","sign":"A488C4FC490922773B01B4AB80C00891","timeStamp":"1710319473611","userPwd":"a123456","username":"123456789"}
desKey:  65102933
desIV:  32028092
retval:  NIszaqFPos1vd0pFqKlB42Np5itPxaNH//FDsRnlBfgL4lcVxjXii4KhogG/C4u8PgeD9Zh0gWcA
680+dOMEUnyV5wEgEthduq/stMtUrc2Rg19aHc4dErjIPuqOAlRqI8Mh0+PVmndQXJvU+IDkE+Fo
DZ1jtmOAAVVW2PsceforwI17yAKhZNRCd5uWrKp2jwhNinmihuhmdyDcsPpax+warkoSWbrR0IG1
tnHN1c0=

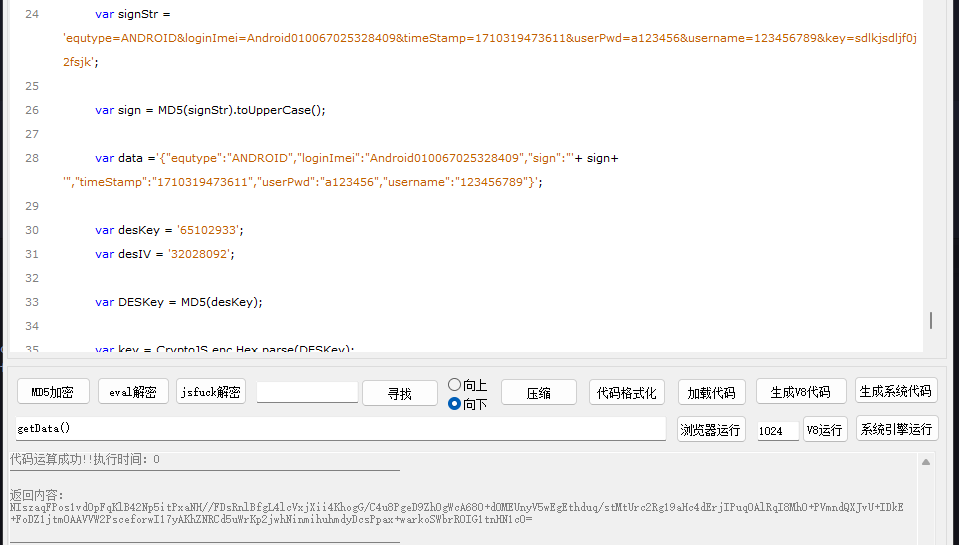

写一个js脚本

dodonew5

和hook到的信息一致
